PRS 800 Fully Automatic
Hollow Block Machine
The PRS 800 fully automatic hollow block machine is a big capacity fully automatic machine in the PRS family.
With its forklift pallet transport system and fully automatic PLC-controlled features, you can easily produce between 8.000 to 16.000 concrete blocks, 550m² of paving blocks, hollow floor blocks (Asmolen), curbstones, and many other types of products in 8 hours. Perfect for big projects, this machine helps you maximize profit by minimizing staff requirements. This machine will be your most valuable assistant in regions with high labor costs and expensive land.
Boost your production power with high performance!
PRS 800
Installation and Operational Details
- Fully automatic, PLC-controlled system
- pallet transport system with forklift
- Total personnel needed: 3 people
- Suitable for 24-hour operation
- Recommended area: 2.000 m²
- Concrete foundation required for the machine: 400 m²
- Roof covering not necessary
- Total energy requirement of the plant: 105 kW
- Recommended generator power: 260 kVA
- Number of containers required for transportation: 3 x 40′ HC containers
Strength, Reliability, and Efficiency All in One
The PRS 800 fully automatic hollow block machine is built with the power of technology to prioritize performance and reliability. It is designed to offer customized solutions to meet your needs and optimize your workflow. discover the full potential of this advanced technology machine by reviewing detailed technical specifications…
01
Single Hopper Design - Unique Production
- Production of concrete blocks in various colors and specifications, single-layer paving blocks and curbstones
- Ability to produce polystyrene concrete blocks (Styrofoam concrete blocks)
- Smooth surfaces ensured with top vibration
- Fast production thanks to its special design
02
Special Design Reinforced by
Modern Technology
- Designed in international shipping dimensions: 225x382x350 cm
- Capable of producing concrete products from 5 cm up to 35 cm in height.
- Reinforced chassis supports: 150x150x5 mm
- Large-capacity mortar hopper with support: 2.5 m³
- Additional vibration damping wedges
- Special rubber wedges to reduce impact
- Replaceable steel design for wearing surfaces
03
Modular Vibration System
- Vibration motors equipped with special cooling fans
- Synchronized vibration system: 7.5 kW x 4 (120 kN)
- Replaceable vibration table top layers
- Compatible with various pallet types and sizes
- Automatic belt tensioning system
- Adjustable vibration for different production types
- Easy maintenance and servicing
04
Consistent High Standards with Every Press
- Fully automatic and adjustable vibration time
- Fully automatic mold filling and shaking grid – 4 kW motor
- Adjustable pressure for hydraulic press – 18.5 kW hydraulic motor
- Smooth surface ensured with top vibration (0.78 kW x 2 units)
- Fully automatic product cleaning system
05
Upper Mold System with 5-Year Replacement Guarantee
- ø60mm shaft at 6 points to prevent upper mold flex
- Maintenance-free SFERO bearing system
- Special chrome-plated shafts
- Product height adjustment system
06
Precise Product Handling and
Stacking Solutions
- Chain-driven and fully automatic speed-adjustable front output table
- Sensors and special rubber wedges preventing product damage
- Stacking robot compatible with all types of forklifts
- Fast and automatic stacking thanks to independent hydraulic system
- Chrome-plated shafts providing a lasting solution against rust
- Stacking system reducing hydraulic and piston load
07
Adjustable Pallet System Compatible with Pallet Sizes
- Claw type pallet pulling system compatible with palletizer (cuber robot)
- Fully automatic pallet cleaning system
- Standard production even with variable pallet dimensions
- Production pallet size 95×115 cm with profile legs
08
Latest Technology Palletizer Robot (Cuber Robot)
- Space-saving compact design
- Pneumatic compression system
- Vertical movement power: 5.5×2 kW servo motors
- Horizontal movement power: 4 kW servo motor
- Jaw rotation power: 4 kW servo motor
- Maximum accuracy with encoder system
- Replaceable bearing rails
09
Innovative Design Feeding Robot
- Fully automatic pallet feeding thanks to sensors
- Compatible with all types of forklifts
- Fast and fully automatic pallet feeding thanks to independent hydraulic system
- Quick and easy pallet separation with pneumatic pistons
- Chrome-plated shafts providing a lasting solution against rust
10
Hydraulic System that Prevents Operator Mistakes
- Special speed control valves
- PLC controlled hydraulic valves
- Special brake system for pistons
- bottom mold equipped with pressure adjustment system
- pressure adjustment system for Upper mold press
- Hydraulic pressure: 40-200 bar
11
Maximum Performance in All Weather Conditions
- Hydraulic cooling system: 150 liters
- Hydraulic heating system: 200 liters
- Large capacity 200-liter hydraulic tank
- Independent hydraulic units for loader (40 L) and unloader robots (40 L)
- Easily replaceable external hydraulic filter
- Easy maintenance without opening the hydraulic unit
12
Easy-to-Use Electrical Panel
- Touch screen display with visual aids
- Compliant with European standards
- PLC controlled automation system
- Siemens, Schneider, and ABB electrical components
- Total machine power: 65 kW
- Electrical system equipped with motor protection units
- Automation system in 7 different languages
13
Shaping Your Ideas with Steel Molds
- St52-3 and Hardox 450 steel options for hollow block and Asmolen molds
- Monoblock CK45 body for paving molds
- St52-3 and Hardox 450 steel options for curbstone molds
- Durable and long-lasting molds with special cutting and heat treatments
14
Quick and Reliable Mold Replacement
- Roller table designed to support mold loads
- Ability to change molds quickly
- Easy and fast mold replacement with compression method
- Optional automatic mold changing system
Technical Specifications
Unlimited Creativity in Production!
With the PRS 800 fully automatic hollow block machine, you can produce over 600 concrete block models including all kinds of hollow blocks, solid blocks, paving blocks, hollow floor blocks (Asmolen), curbstones, rain gutters, etc., ranging from 5 cm to 35 cm in height. Meet the needs of different sectors and highlight your products with creative designs. Explore the detailed production capacity of the PRS 800 machine.
Popular Concrete Blocks
100x400x200 mm
- Products On Pallet : 16 Pieces
- Capacity : 16.000 Pcs / 8 Hours
150x400x200 mm
- Products On Pallet : 10 Pieces
- Capacity : 10.000 Pcs / 8 Hours
200x400x200 mm
- Products On Pallet : 8 Pieces
- Capacity : 8.000 Pcs / 8 Hours
300x400x200 mm
- Products On Pallet : 4 Pieces
- Capacity : 4.000 Pcs / 8 Hours
Popular Paving Blocks
163x197 mm
- Products On Pallet : 20 Pieces
- Capacity : 555 m² / 8 Hours
153x224 mm
- Products On Pallet : 15 Pieces
- Capacity : 515 m² / 8 Hours
98x198 mm
- Products On Pallet : 32 Pieces
- Capacity : 624 m² / 8 Hours
128x238 mm
- Products On Pallet : 18 Pieces
- Capacity : 546 m² / 8 Hours
200x228 mm
- Products On Pallet : 14 Pieces
- Capacity : 632 m² / 8 Hours
400x600 mm
- Products On Pallet : 2 Pieces
- Capacity : 480 m² / 8 Hours
Popular Hollow Floor Blocks (Asmolen)
150x500x200 mm
- Products On Pallet : 5 Pieces
- Capacity : 5.000 Pcs / 8 Hours
120x520x200 mm
- Products On Pallet : 6 Pieces
- Capacity : 6.000 Pcs / 8 Hours
80x520x200 mm
- Products On Pallet : 9 Pieces
- Capacity : 9.000 Pcs / 8 Hours
160x520x200 mm
- Products On Pallet : 5 Pieces
- Capacity : 5.000 Pcs / 8 Hours
150x550x200 mm
- Products On Pallet : 5 Pieces
- Capacity : 5.000 Pcs / 8 Hours
Popular Curbstones & Rain Gutters
95x500x200 mm
- Products On Pallet : 8 Pieces
- Capacity : 8.000 Pcs / 8 Hours
150x500x300 mm
- Products On Pallet : 4 Pieces
- Capacity : 4.000 Pcs / 8 Hours
150x700x300 mm
- Products On Pallet : 2 Pieces
- Capacity : 2.000 Pcs / 8 Hours
355x300x220 mm
- Products On Pallet : 10 Pieces
- Capacity : 10.000 Pcs / 8 Hours
400x260x120 mm
- Products On Pallet : 12 Pieces
- Capacity : 12.000 Pcs / 8 Hours

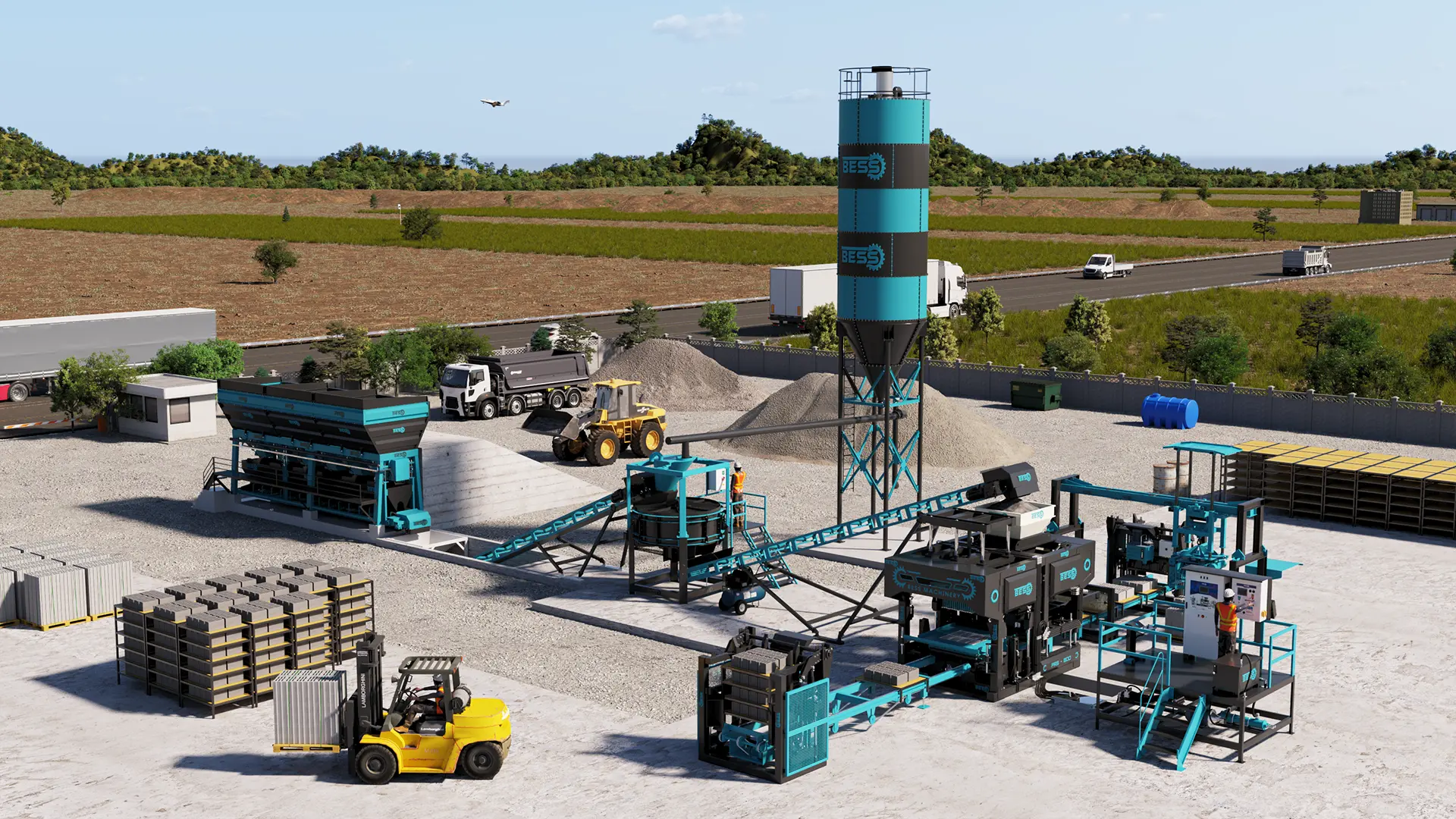

Installation Layout
You can click on the numbered items in the sample installation layout to review the specifications of the PRS 800 fully automatic hollow block machine equipment. You can customize your setup by adding or removing desired products. Please note that the provided installation layout example may vary based on your selected equipment and the land.
Other Capacities
BESS™ Frequently Asked Questions (FAQ)
The recommended installation and production area for the PRS 800 fully automatic hollow block machine is 2.000 m². Go to installation details.
A total of 3 personnel are required for the efficient operation of a fully automatic plant: 1 machine operator, 1 forklift operator, and 1 raw material loading staff. Go to operational details.
Yes, vibrating machines, especially hollow block machines, can experience fractures and cracks in their frames due to the vibration and pressing systems they operate with. These machines undergo high levels of stress on their chassis. However, we minimize the impact of vibration on the frame by using special reinforcements and damping wedges in our machines. This ensures robust and long-lasting solutions for our users. Go to reinforced Special Design chassis.
The vibration system is essential for hollow block machines and is the most important factor affecting product quality. The most important features in vibration systems are easy installation and use, access to spare parts and service, and durability and reliability. For quality production and high performance, it is essential to consider these factors in the vibration system. Go to modular vibration system
The pallet dimensions for the PRS 800 are 95×115 cm, and they can be made from plastic, wood, or metal. In fully automatic systems, the products are transported to the curing area using a forklift. Go to Pallet System
