BESS™ Equipment
Capacity
0.50 m³
Chassis
8X8 3mm Profile
Discharge Door
Spring System
Vibration
0.28 kw
Capacity
8 m³
Chassis
10x10 3mm Profile
Discharge Door
Spring – Piston System
Vibration
0.28 kw
Capacity
2x8 m³ = 16 m³
Chassis
12x12 5mm profile
Discharge Door
Piston System
Vibration
2x0.28 Kw
Weighing System
S Type Loadcell 4 Pieces – Adjustable Connection
Capacity
3x8 m³ = 24 m³
Chassis
12x12 5mm profile
Discharge Door
Piston System
Vibration
3x0.28 Kw
Weighing System
S Type Loadcell 4 Pieces – Adjustable Connection
Capacity
4x8 m³ = 24 m³
Chassis
12x12 5mm profile
Discharge Door
Piston System
Vibration
4x0.28 Kw
Weighing System
S Type Loadcell 4 Pieces – Adjustable Connection
Dimensions
950cm x 100cm x 45cm
Belt
60cm Width - 10 Mm Thickness - 4 Layers
Motor Power
3 Kw Gearbox
Carrier Roll
Ø60x300 Bearing with Dust Cover
Mixer Type
Pan Mixer (Turkish Made) – 4 Mixing Arms
Capacity
500 Lt – 0.33 m³
Discharge Door
Pneumatic System
Electric Motor
11 Kw
Gearbox
Dg 320 - Dişsan Brand
Wall and Base Thickness
10mm+10mm reinforced metal
Mixing Blades
25 mm Ni-hard Casting Iron - Replaceable - Bolted

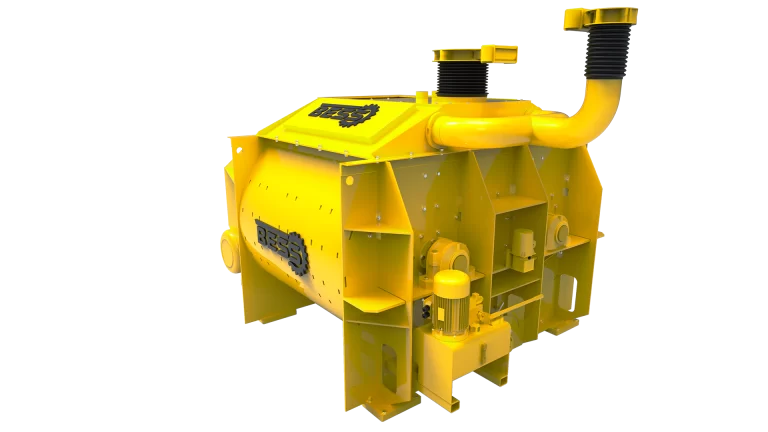

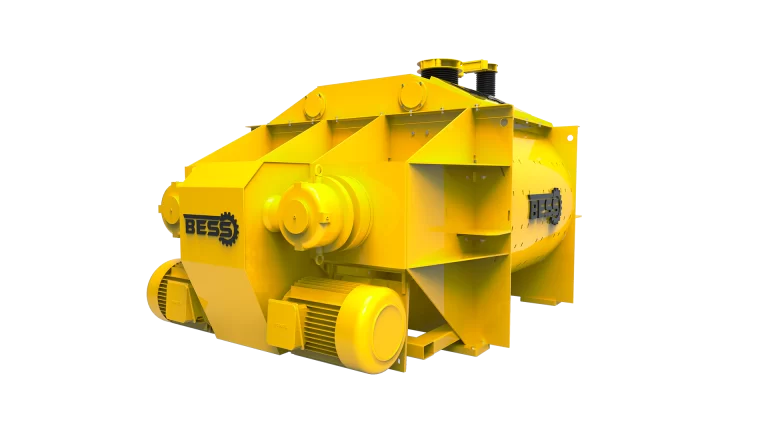

Mixer Type
Twin Shaft Mixer – Italian (6+6 Mixing Arms)
Capacity
1500 Lt - 1m³
Discharge Door
Hydraulic System
Electric Motor
2x18.5 Kw
Gearbox
Brevini – Italian
Lubrication
Automatic System
Wall And Base Thickness
25mm+25mm Replaceable - Bolted
Mixing Blades
25 mm Ni-Hard Cast - Replaceable - Bolted
Emergency Discharge
Manual Pump
Silo Type
Bolt Type
Capacities
60 - 80 - 100 - 120 Tons
Discharge Head
12″ Double-Sided Valve Compatible
Air Ventilation System
4'' Pipe
Maintenance Cover
Located In the Upper Section Of The Silo
Ladder
Flat Type with Rail – Bolted
Chassis
Discharge Plate 8mm – Other Sections 4mm
Paint
1 Coat of Primer - 1 Coat Of Rapid Paint
Capacity
18 Ton / Hour
Chassis
8'' Pipe x 6m Length
Input Size
12'' Universal
Output Size
8'' Fixed Angle
Maintenance Cover
Under The Motor
Motor
7,5 Kw With Gearbox
Capacity
300 Lt / Min
Type
Piston Type Compressor
Electric Motor
4 Kw
Working Pressure
6-8 Bar (Maximum 12 Bar)
Shock Absorber
Ø120 60 Rubber Wedge x 4 Pieces
Pressure Switch
Adjustable Tank Top Pressure Automatic

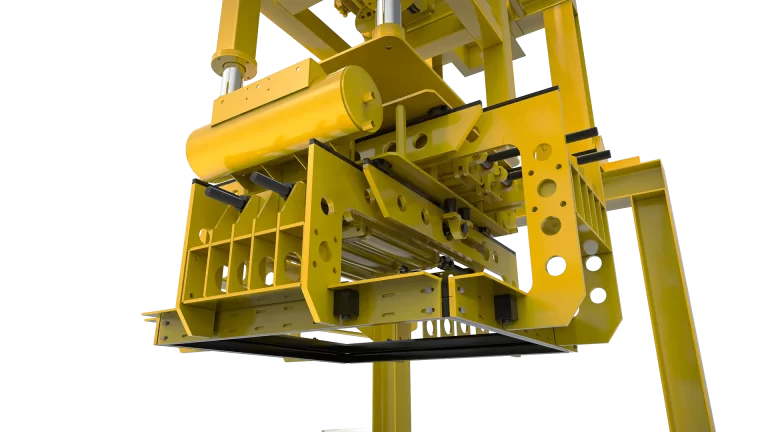

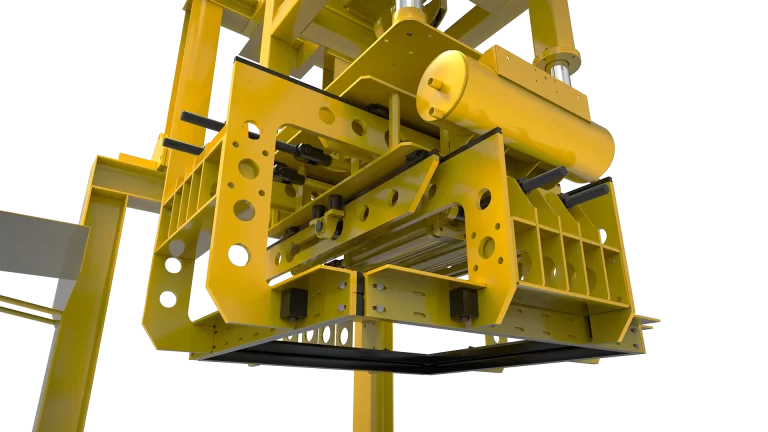

Compression System
Pneumatic
Vertical Movement
5.5×2 Kw Servo Motors
Horizontal Movement
4 Kw Servo Motor
Jaw Rotation
90 ° - 4 Kw Servo Motor
Command System
Encoder System
